FP-2020-DE-BLK

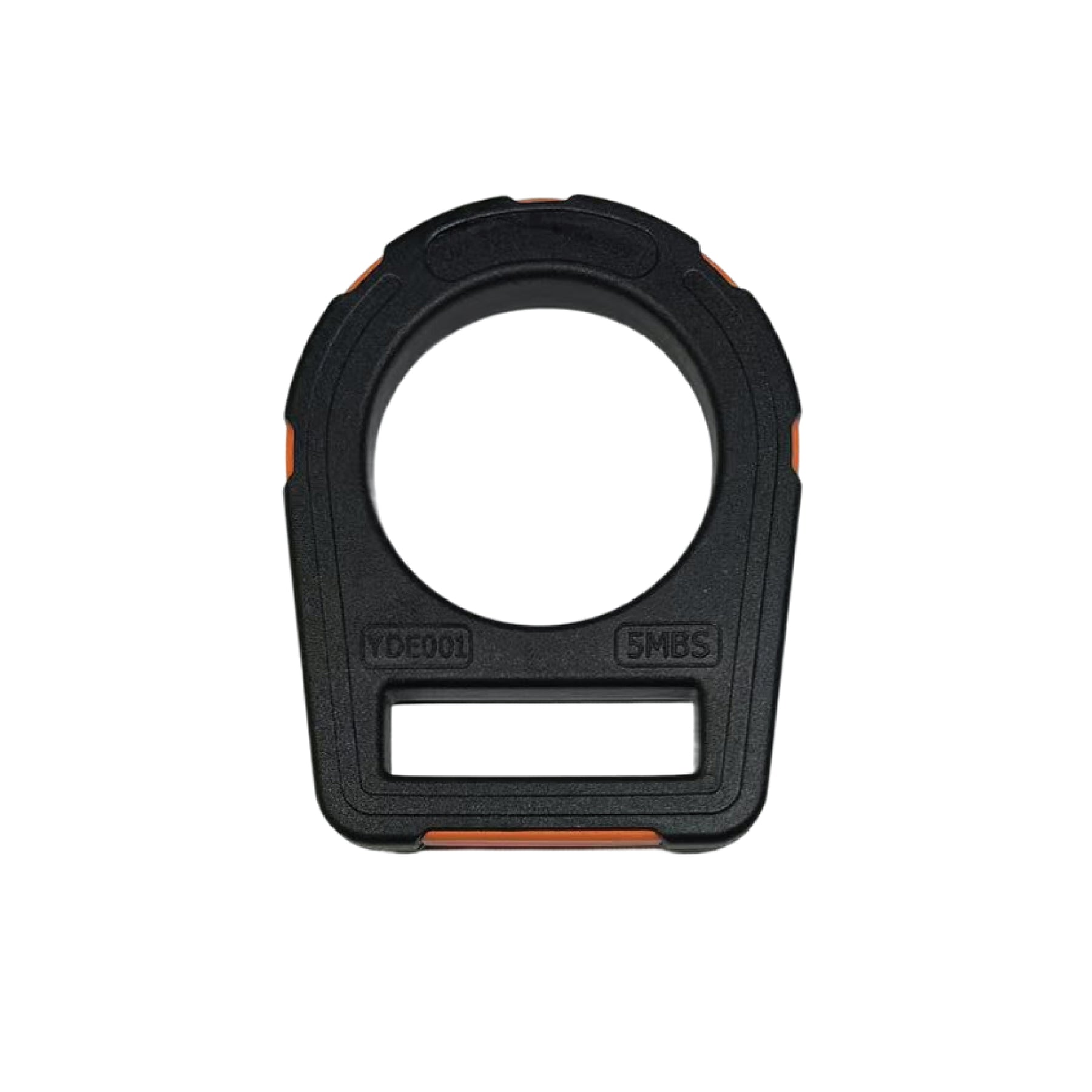

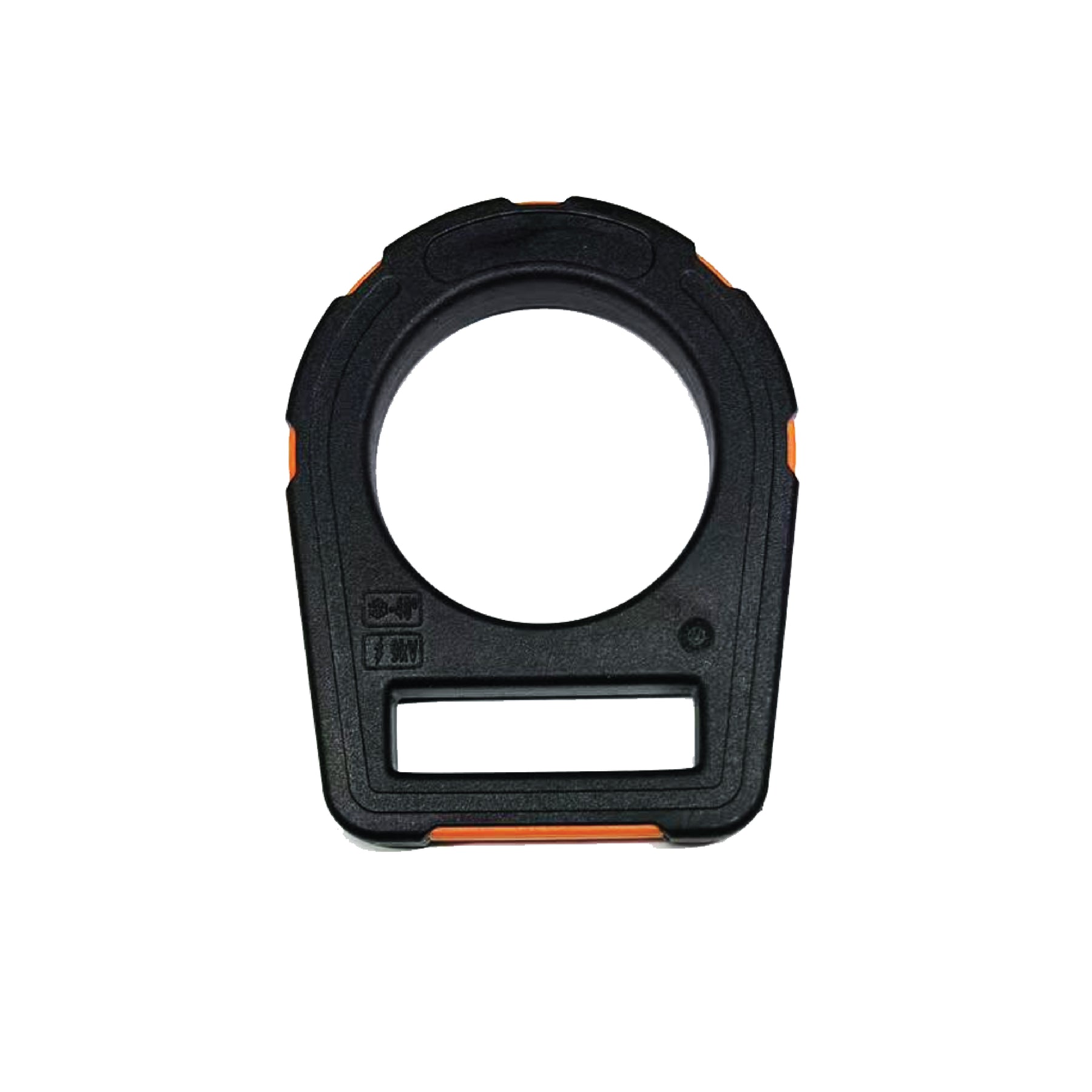

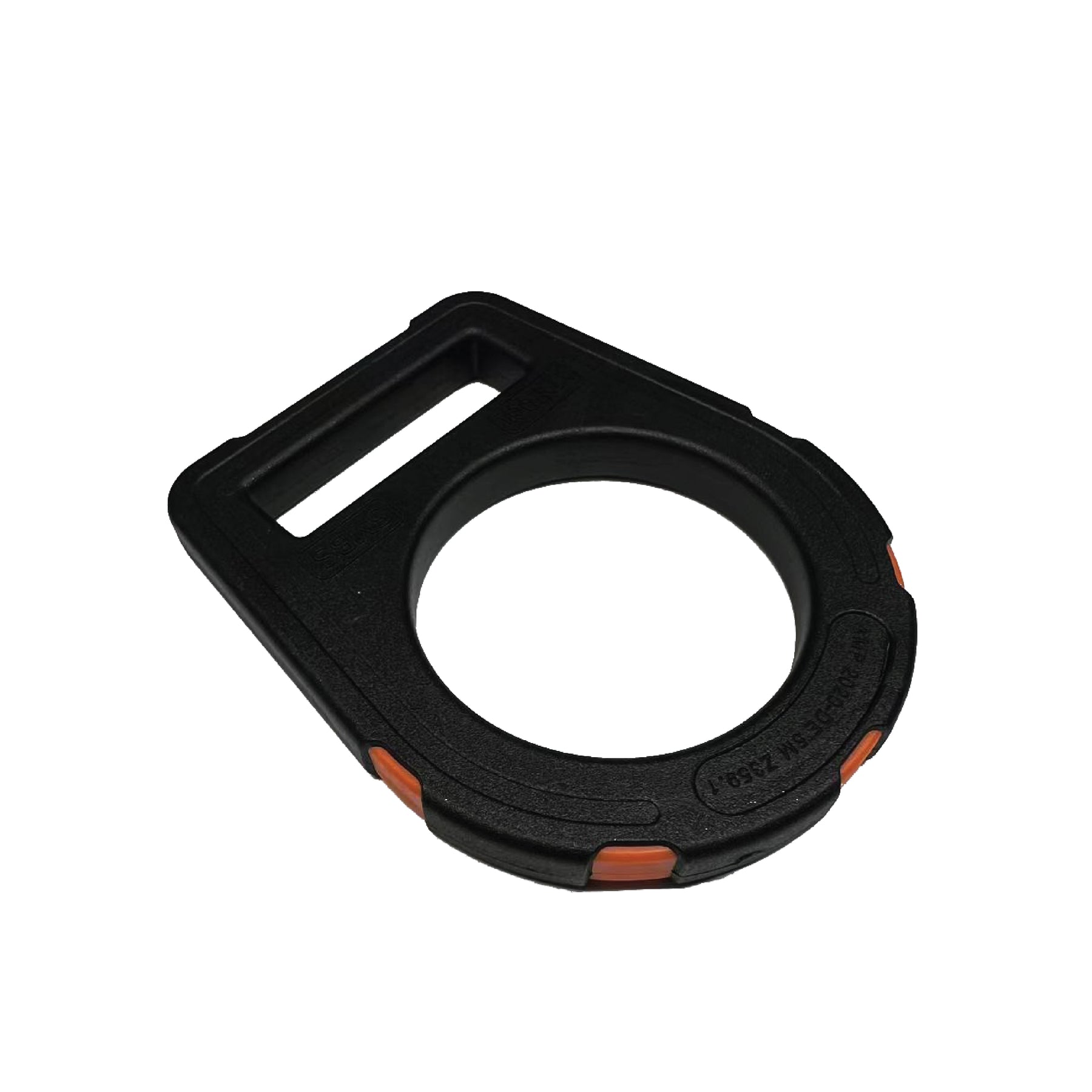

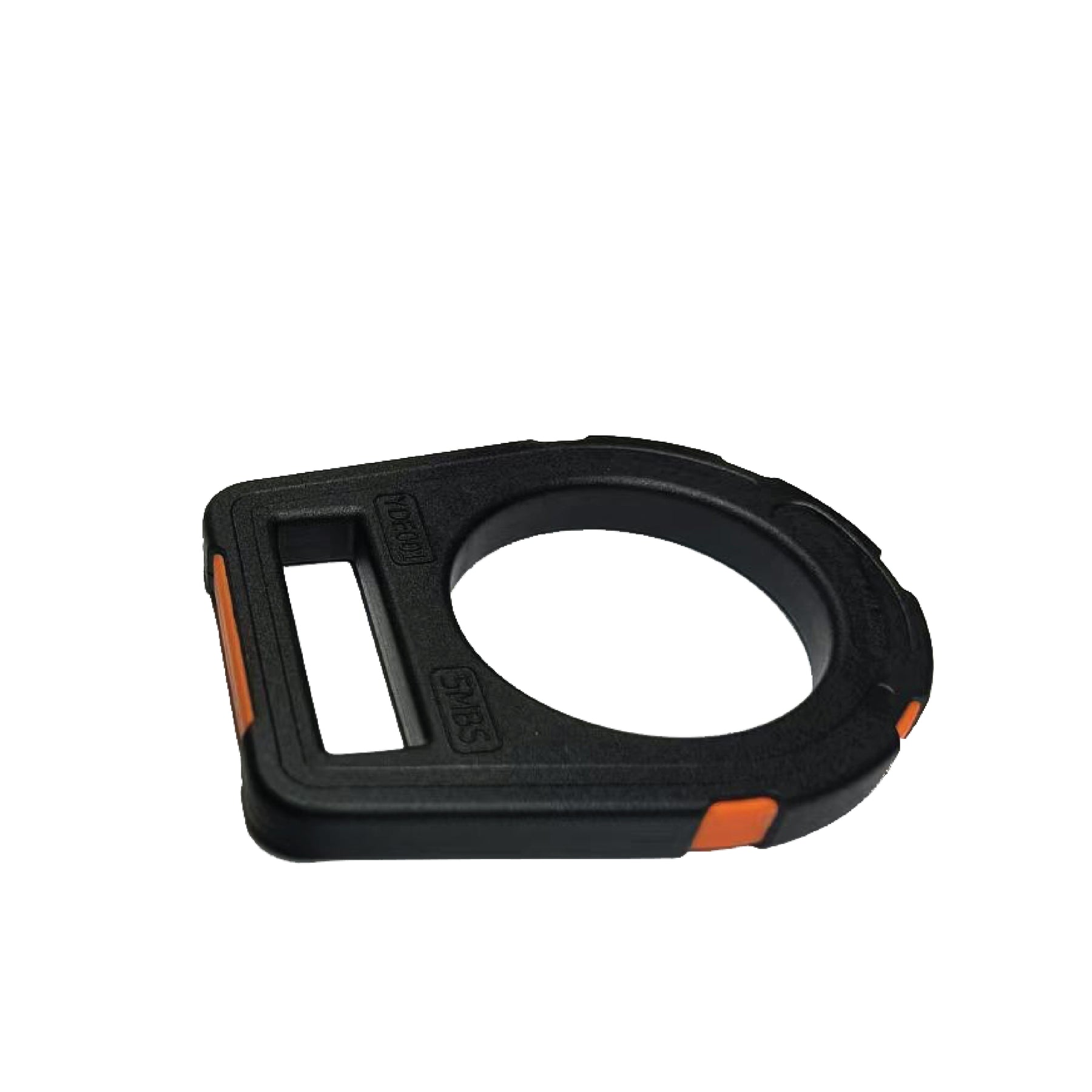

Engineered for high-voltage work environments, the FUSION 2020 Dielectric D-Ring offers the strength of heat-treated steel combined with the safety of a non-conductive over-molded polymer shell. This design ensures maximum durability while protecting workers from electrical hazards with a minimum dielectric resistance of 9kV.
Tested and certified to both ANSI Z359.12-2019 and CSA Z259.12-16, the FUSION 2020 is proof loaded to 16kN and withstands up to 23kN minimum breaking strength, making it ideal for fall arrest harnesses in electrical utility, telecom, or energy-sector operations.
Material: Heat-treated sheet steel (core) + Over-molded non-conductive polymer
Dielectric Rating: ≥ 9kV
Proof Load: 3600 lbs / 16kN
Minimum Breaking Strength (MBS): 5000 lbs / 23kN
Certifications:
ANSI Z359.12-2019
CSA Z259.12-16
Dimensions:
Height: 87mm (3.43")
Width: 87mm (3.43")
Ring inner diameter: 57mm (2.24")
Slot width: 51mm (2.0")
Thickness: 13mm (0.51")
Weight: 5.8 oz / 164 g
Color: Black (dielectric)
Use Case: High-voltage work safety / Electric utility fall protection / Non-conductive harness integration
