Dielectric Quick Buckle Set – FUSION 20155

The FUSION 20155 Dielectric Quick Buckle Set includes two specialized buckles engineered for use in high-voltage safety systems. Both pieces are constructed with heat-treated sheet steel cores, fully encapsulated in non-conductive polymer for 9kV dielectric resistance, ensuring compliance in electric utility and telecom environments.

Certified to ANSI Z359.12-2019 and CSA Z259.12-16, each buckle is rated to 18kN minimum breaking strength (4000 lbs), ideal for use in dielectric harness assemblies, tool tethering, or insulated gear setups.

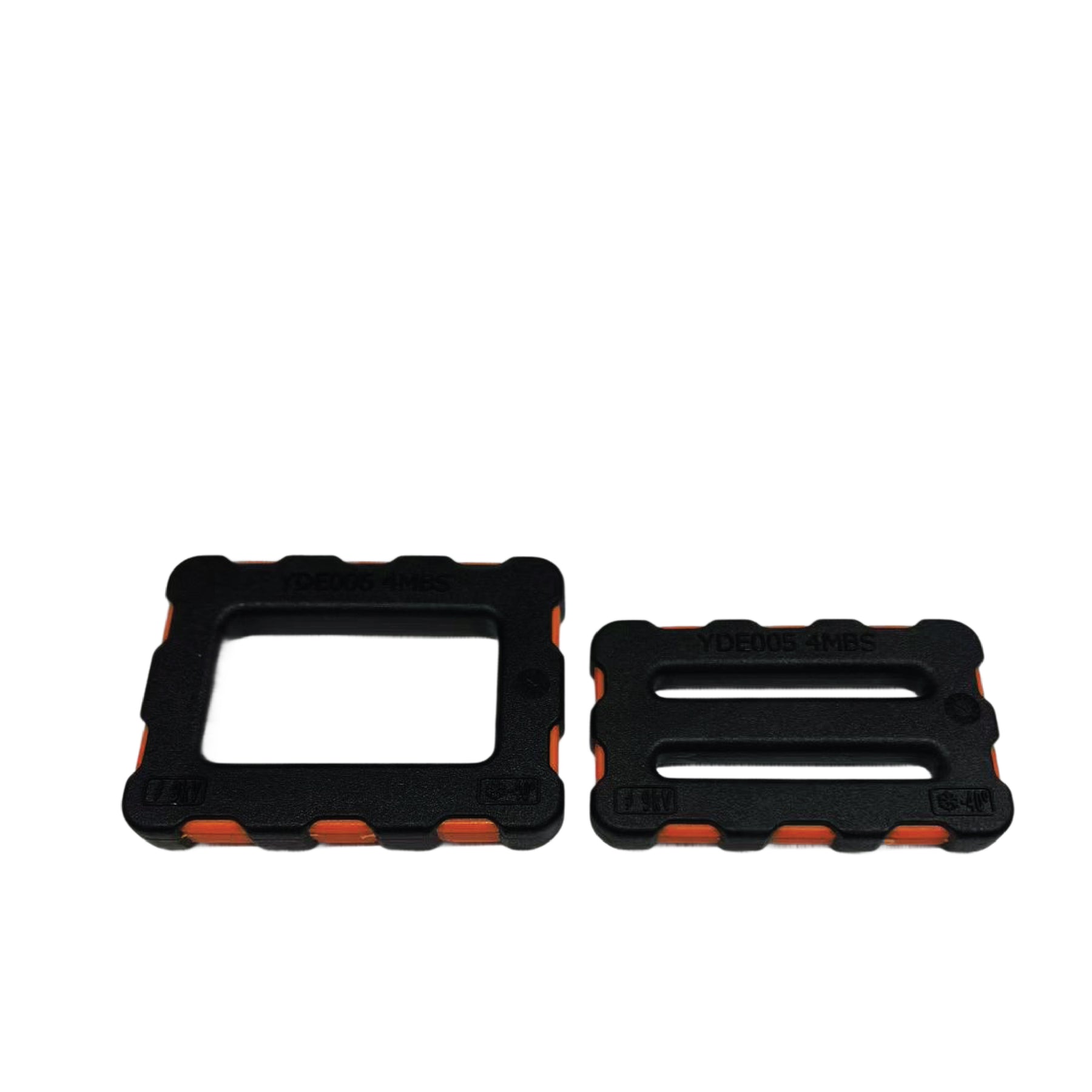

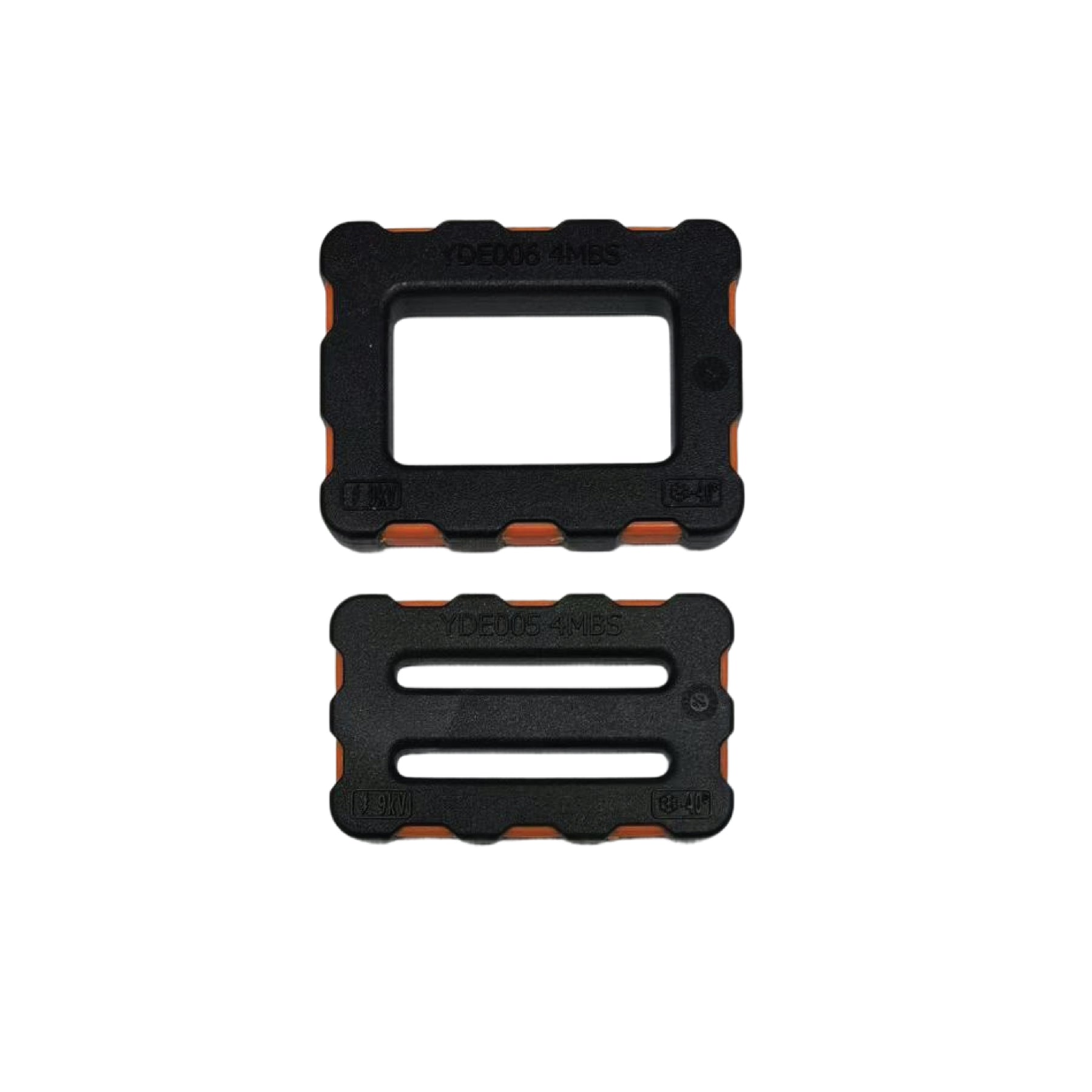

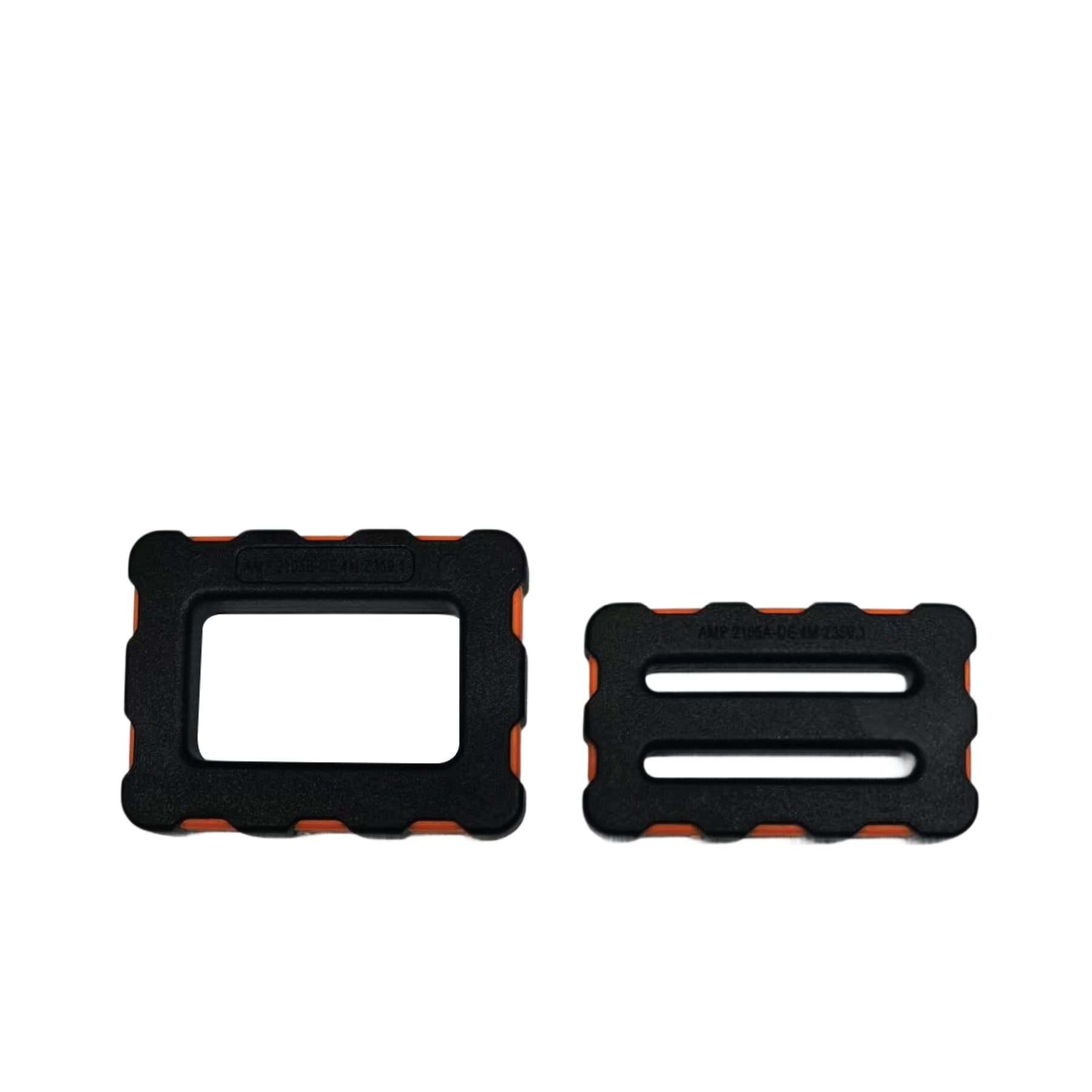

🔹 Included in this set:

1. Rectangular Dielectric Buckle (Model: N-DE006)

• Opening Size: 47 × 28 mm (1.85" × 1.1")

• Overall Size: 71 × 54 mm (2.8" × 2.13")

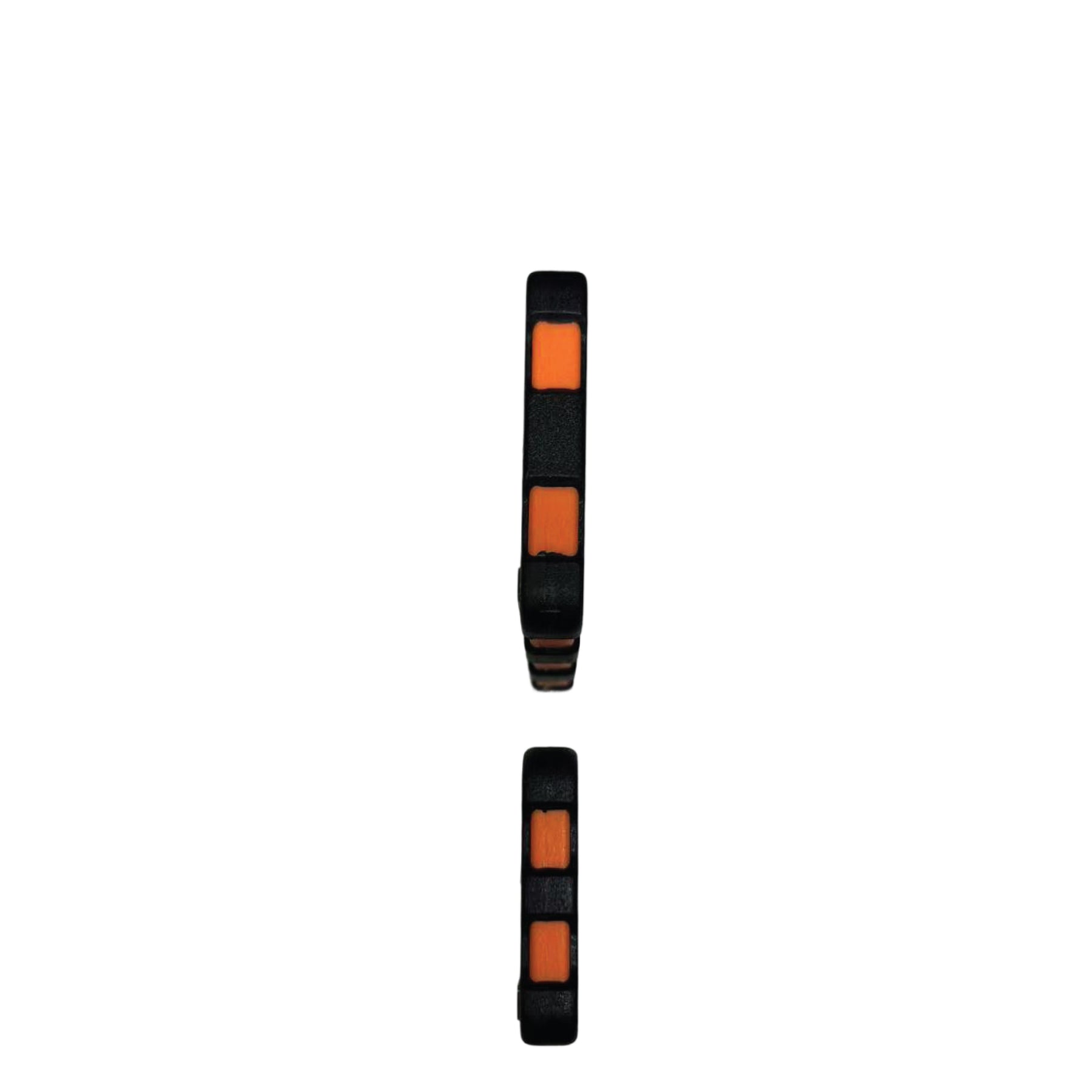

• Thickness: 9 mm (0.35")

• Weight: 2.2 oz / 0.14 lb / 61 g

2. Dual-Slot Dielectric Buckle (Model: N-DE005)

• Slot Lengths: 46 mm (1.8")

• Overall Size: 68 × 42 mm (2.68" × 1.65")

• Thickness: 8 mm (0.32")

• Weight: 1.6 oz / 0.10 lb / 45 g

✅ Shared Features:

• Material: Heat-treated steel core + plastic over-mold

• Dielectric Resistance: ≥ 9kV

• Minimum Breaking Strength: 18kN / 4000 lbs

• Certifications:

  • ANSI Z359.12-2019

  • CSA Z259.12-16

• Application: Harness attachments / Dielectric-safe tether points / Utility safety kits
