FP-2022-DE-BLK

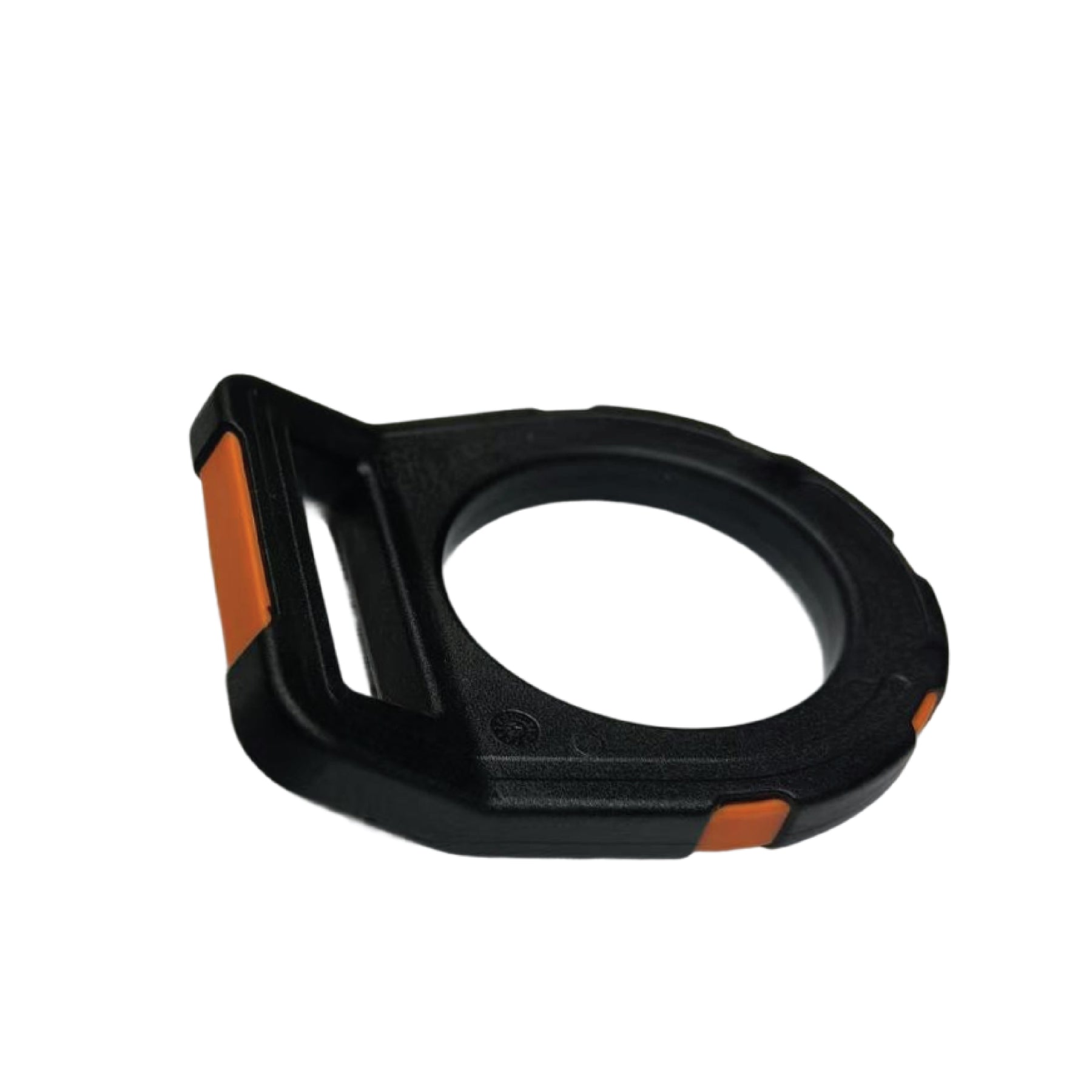

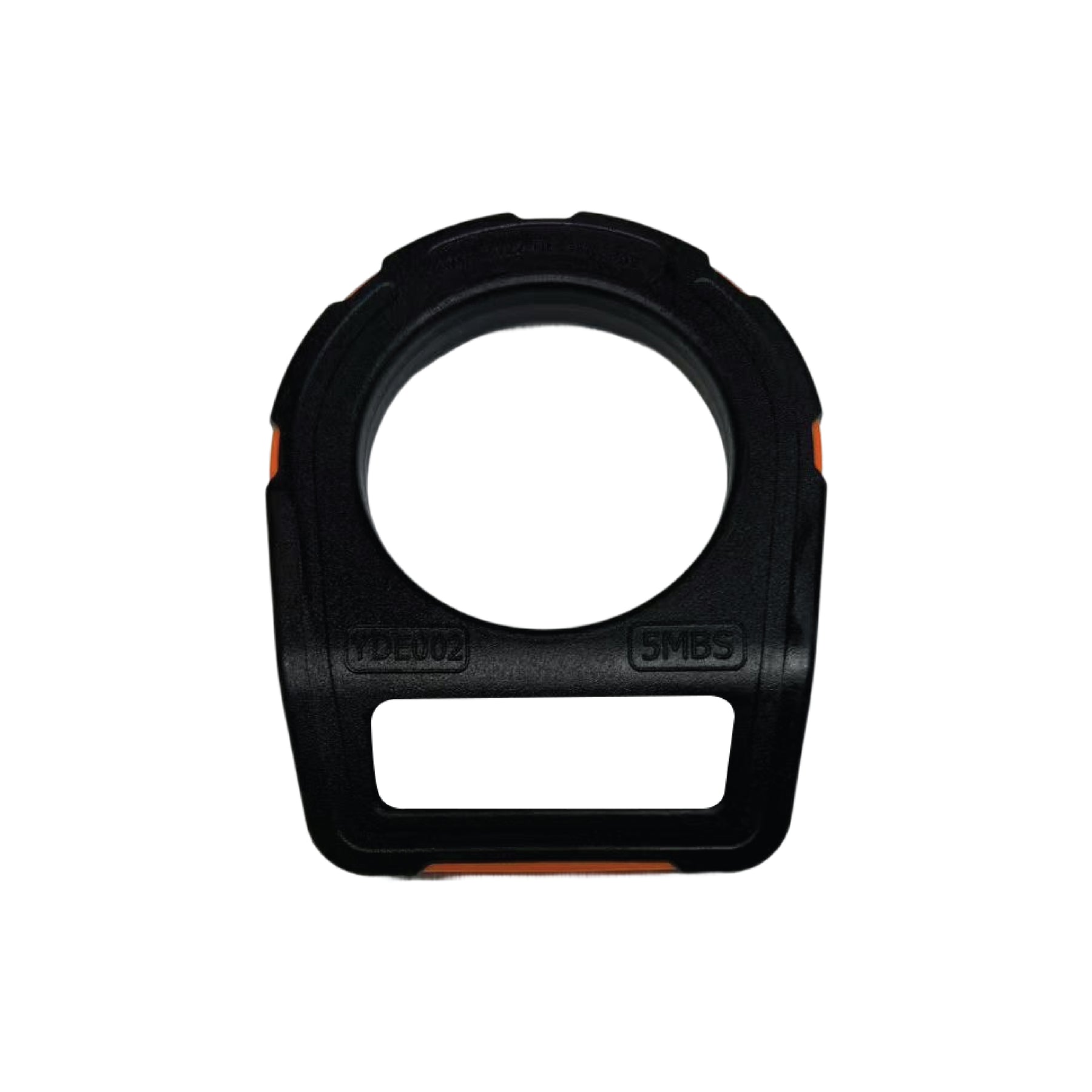

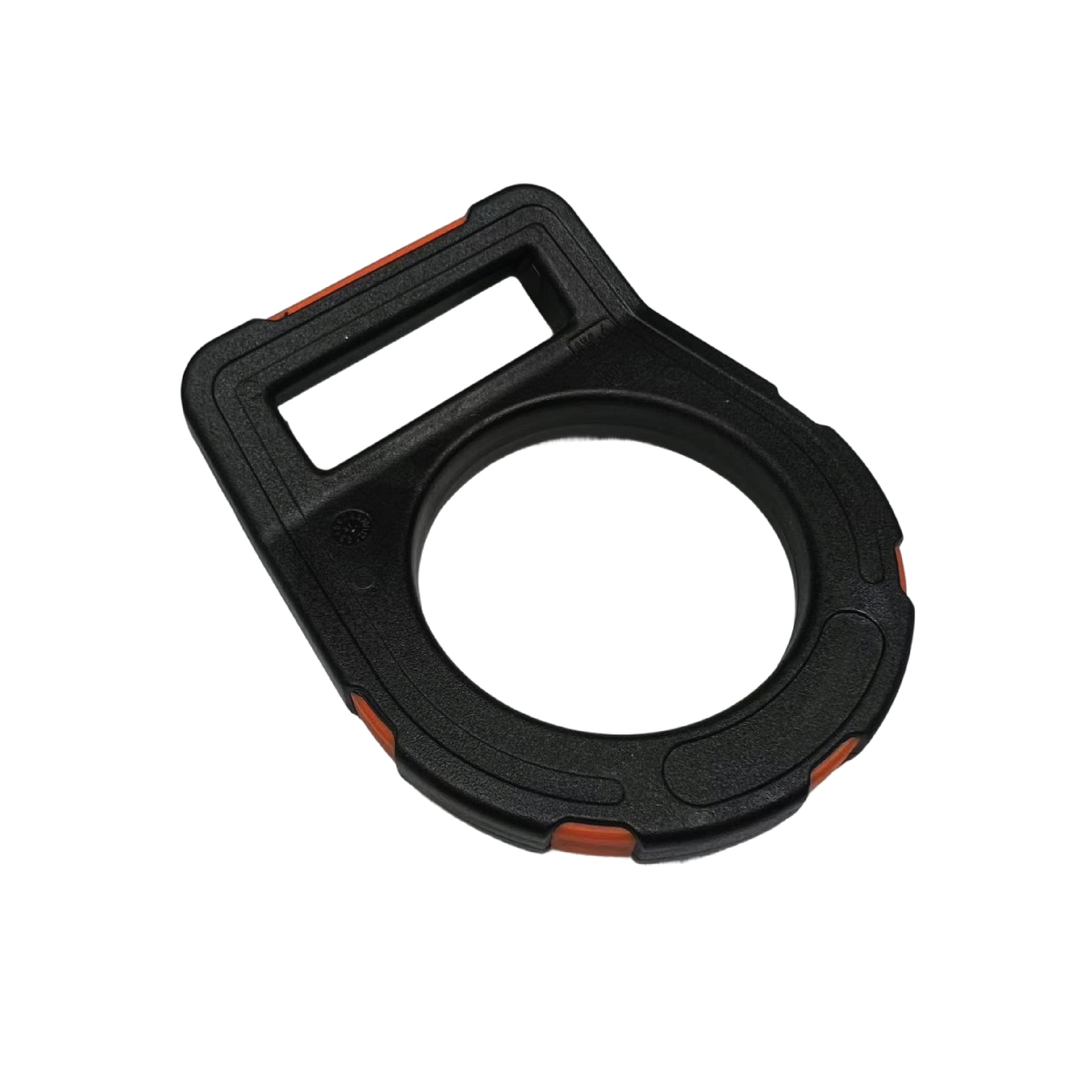

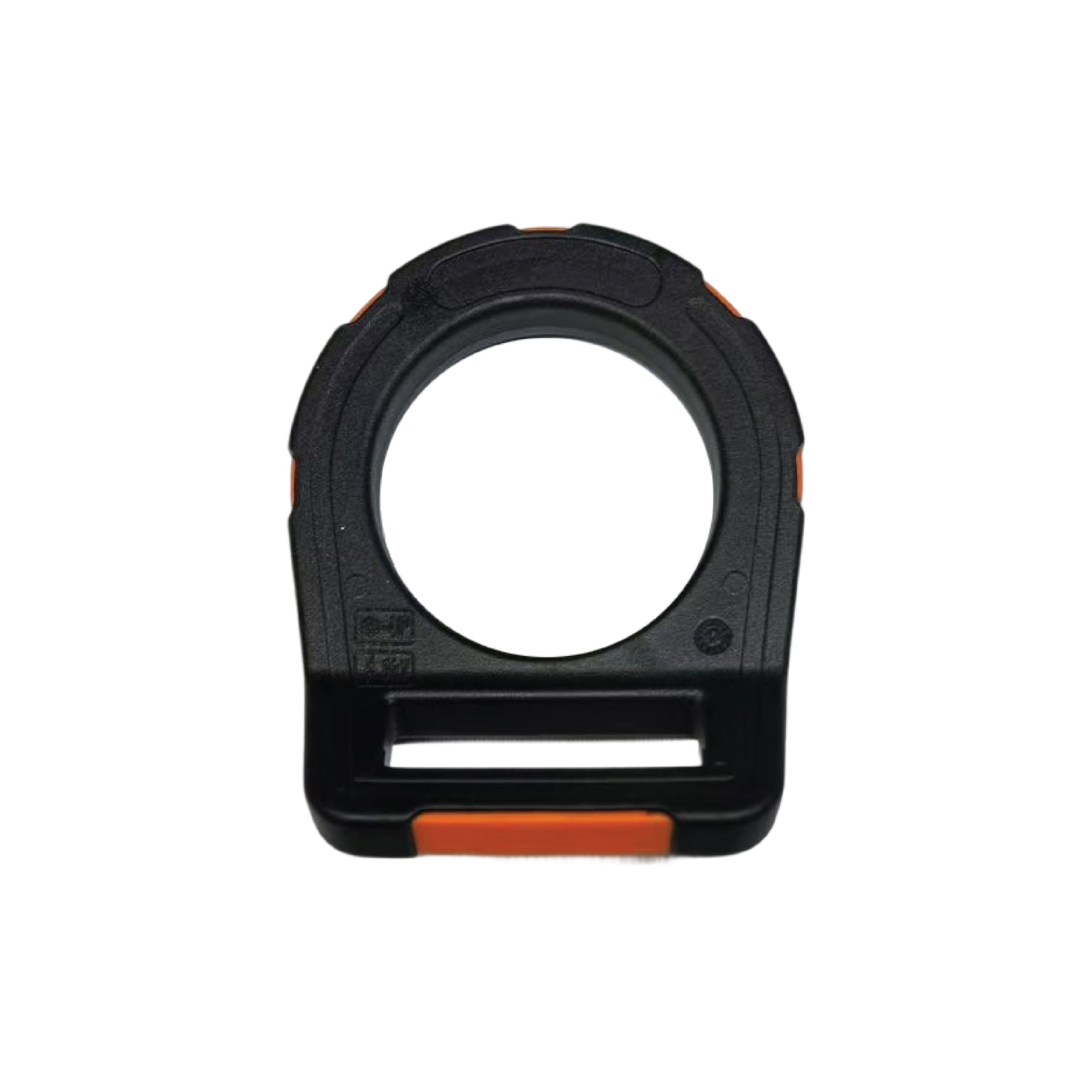

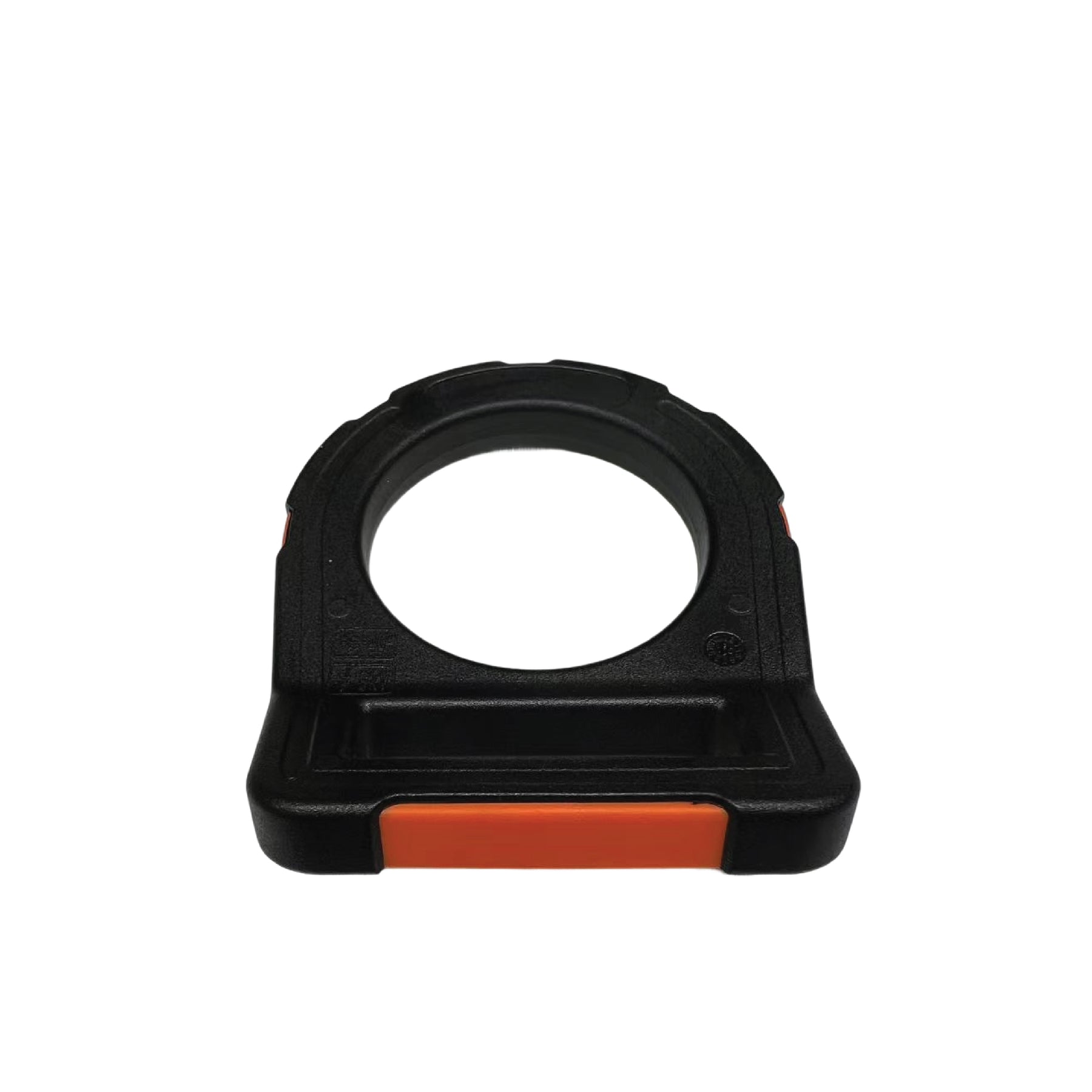

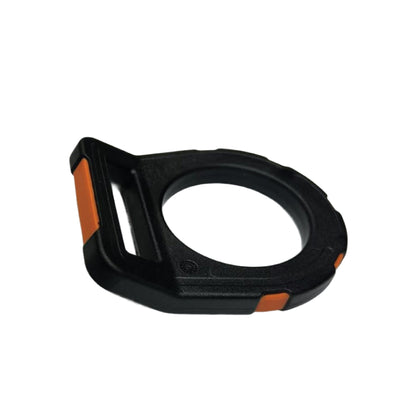

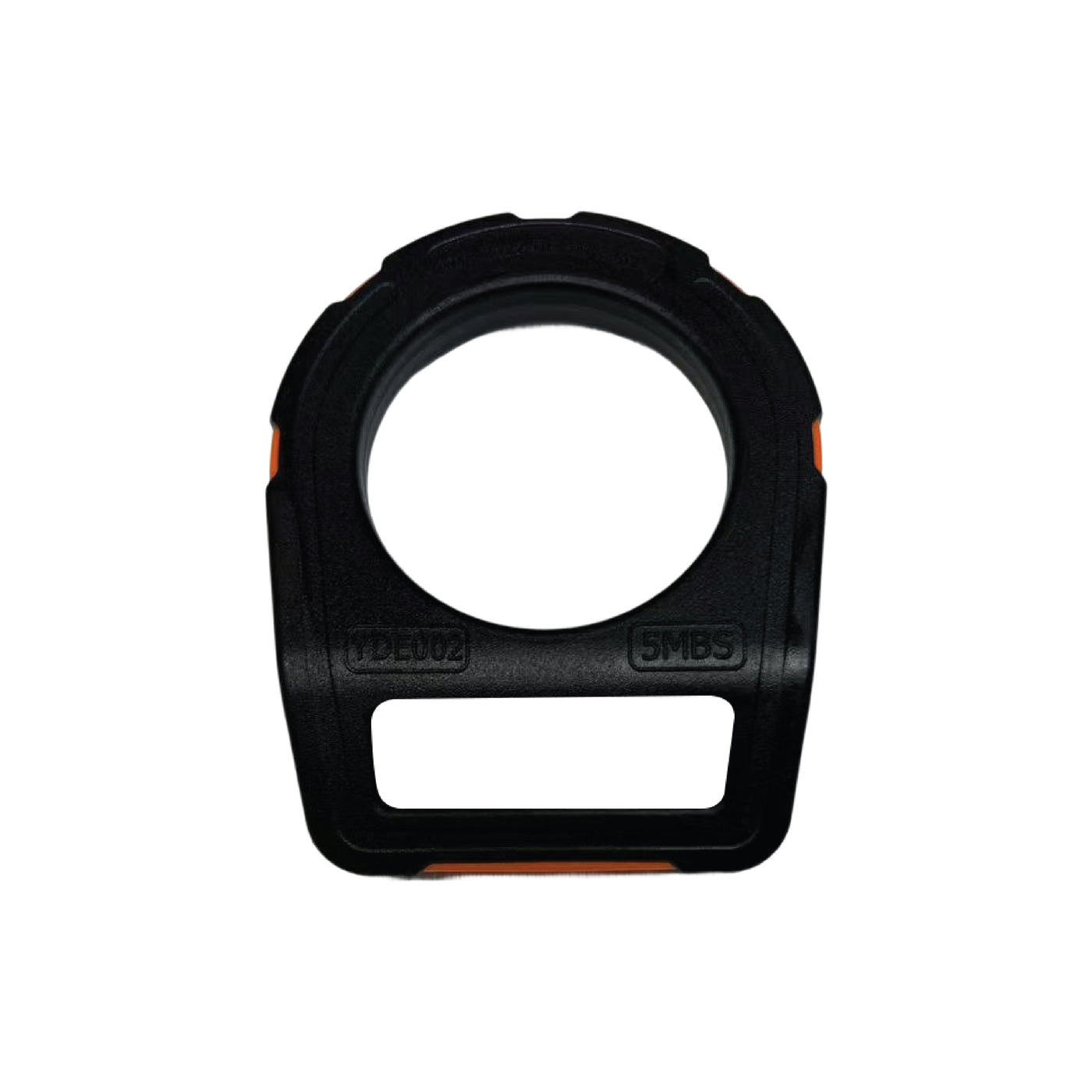

Built for safety and optimized ergonomics, the FUSION 2022 Dielectric Bent D-Ring is designed with a 30° angled base for improved alignment during use. It features a heat-treated steel core for strength, over-molded with non-conductive polymer to meet 9kV dielectric resistance, making it ideal for electrical utilities, telecom, and high-voltage maintenance environments.
Tested and certified to ANSI Z359.12-2019 and CSA Z259.12-16, it offers 16kN proof load and 23kN minimum breaking strength, while the angled profile allows for better mobility and easier connection in overhead or awkward positions.
Material: Heat-treated sheet steel core + over-molded dielectric polymer
Dielectric Rating: ≥ 9kV
Proof Load: 3600 lbs / 16kN
Minimum Breaking Strength (MBS): 5000 lbs / 23kN
Weight: 6.1 oz / 176 g ≈ 0.38 lb
Certifications:
ANSI Z359.12-2019
CSA Z259.12-16

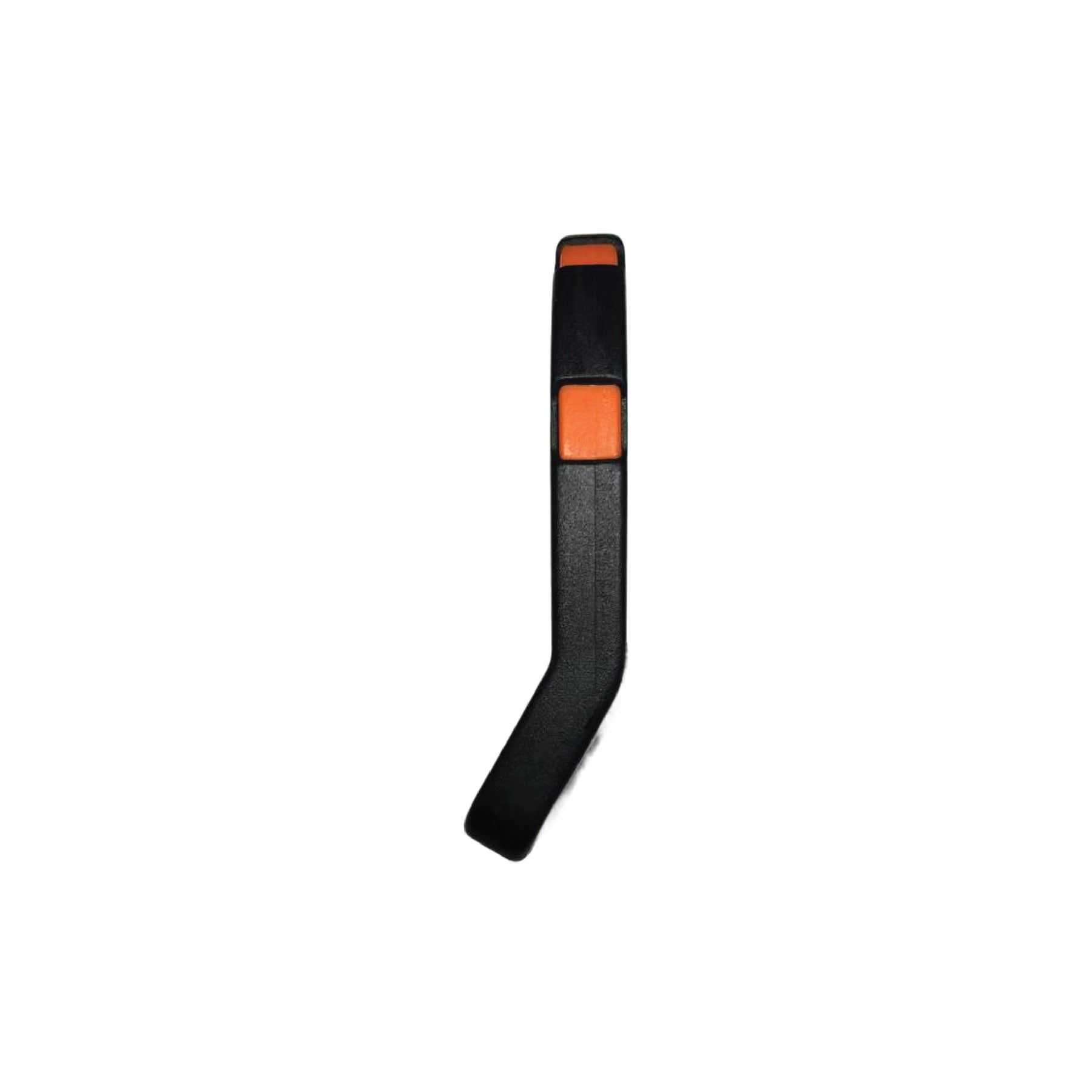

Design Feature: 30° angled base for ergonomic positioning
Dimensions:
Height: 87mm (3.43")
Width: 87mm (3.43")
Inner ring diameter: 57mm (2.25")
Slot width: 51mm (2.0")
Thickness: 13mm (0.51")
Use Case: Electric safety harnesses / Utility maintenance / High-voltage fall arrest systems
