The Dual Slot Steel Connector is made from forged steel for use in compatible equipment assemblies. Its dual-slot connector profile provides a defined connection point for straps or hardware. Minimum breaking strength is 18 kN. Working load limit is 1,000 lb.
• Product Number: FP-2011-BLK
Body and Connection
• Material: Forged steel.
• Shape: Dual-slot connector.
• Finish: Electroplated.
Size and Weight

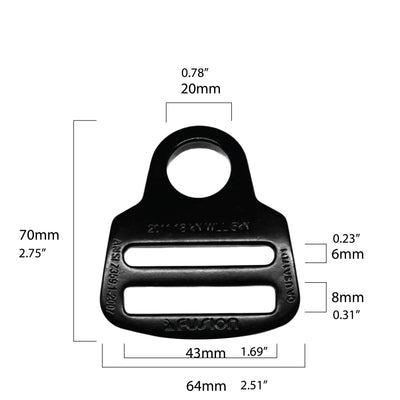

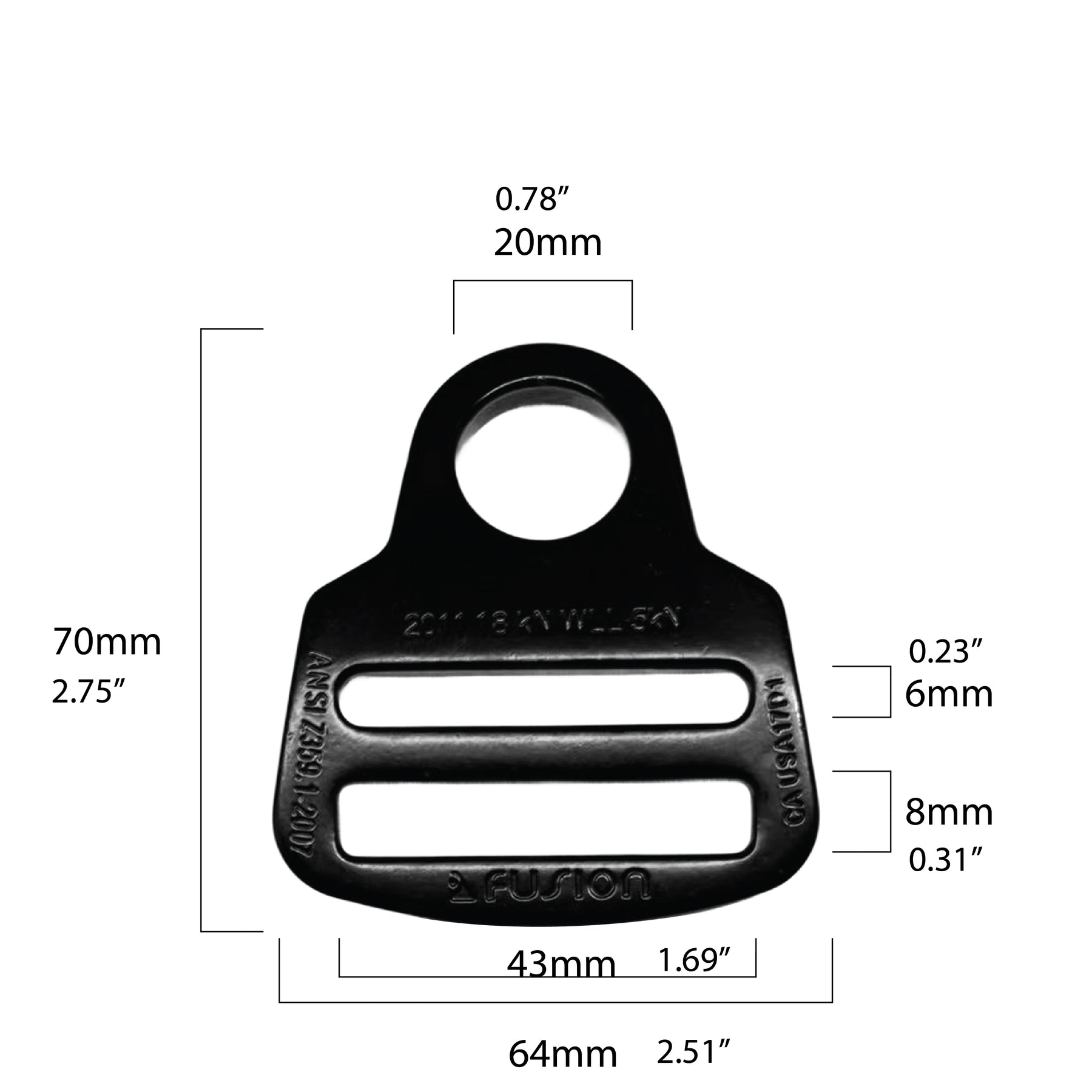

• Dimensions: 70 × 64 mm / approximately 2.76 × 2.52 in.
• Opening Size: Top eye diameter: 20 mm; slot width: 43 mm; upper slot height: 6 mm; lower slot height: 8 mm.
• Weight: 0.2 lb/3.2 oz.
• Colors: Black.
Strength and Standards
• Minimum Breaking Strength: 18 kN.
• Standard: meets ANSI Z359.1.
• Working Load Limit: 1,000 lb.
